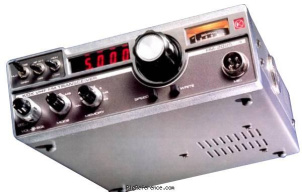

KDK FM-2025 Mobile VHF Transceiver

 (4.3/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
143.000-148.995 MHz (Asia)
144.000-148.995 MHz (Europe)
TX-range
143.000-148.995 MHz (Asia)
144.000-148.995 MHz (Europe)
HAM bands
-
Stability
-
Tuning steps
5 or 12.5 kHz depending on region
Filters
-

Receiver

Modulations
FM
Sensitivity
S/N ≤ 35 dB: 1uv
S/N ≤ 20 dB: 0.35 µV
SINAD ≤ 10%: 0.5 µV
Selectivity
± 6 kHz at -6 dB
± 16 kHz at -60 dB
Receiver system
Double superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
≥ 70 dB
Audio output
≥ 1.5 W @ 10% THD into 8 Ohms

Transmitter

Modulations
FM
RF-Output
High: 25 W, Low: 3 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
180 × 60 × 195 mm (7.09 × 2.36 × 7.68 in)
Weight
2.20 kg (4.9 lbs)
Form factor
Mobile
Manufactured
Between 1980 and 19xx
MPN

Other features

Memories
10 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other KDK documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the KDK FM-2025. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the KDK FM-2025 might be around:

  • AUD 11.00
  • USD 3.00
Price Condition Year User
USD 225.00 Good / Used 1985 N8WLF
AUD 70.00 Okay / Used 2005 zl3xd
