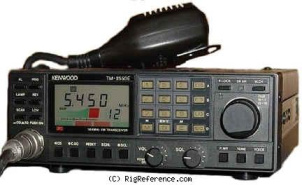

The Kenwood TM-2550E is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit. Frequency stability is ± 15 p.p.m. RF output is 5-45 W. Audio output is > 1.5 W across 8 ohm with 5% distortion. Power requirements are 13.8 V DC. Current drain is 600 mA in receive and 9.5 A in transmit. Dimensions are 60 × 180 × 215 mm. It features DCL.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ± 15 p.p.m.
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- < 0.25 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB)
24 kHz (-60 dB) - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.695 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- > 1.5 W across 8 ohm with 5% distortion
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- 5-45 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC
- Current drain RX
- 600 mA
- TX
- 9.5 A
Physical
- Dimensions (w×h×d)
- 180 × 60 × 215 mm (7.09 × 2.36 × 8.46 in)
- Weight
- 1.95 kg (4.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DCL
- Accessories
- -
- RigReference ID
- 3395
- MPN
- KENWOOD-TM-002550E
Manuals, diagrams and brochures
- Kenwood TM-2550A E PDF - 25.12 MB, submitted by Berend
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-2550E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Kenwood TM-2550E is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
