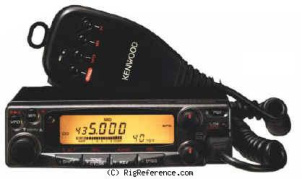

Kenwood TM-451E

Mobile UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Kenwood TM-451E is a mobile transceiver. It covers 144-146 / 430-440 MHz for transmit and 430-440 MHz for receive. RF output power is selectable: High: 35 W, Medium: 10 W, Low: 5 W. The radio features 9K6 packet ready functionality. It has 1 memory bank with 41 channels. Power requirement is 13.8V DC. The current drain is Max 600 mA in receive and Max 10 A in transmit. Dimensions are 40 × 140 × 160 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 41 channels in 1 bank(s)

Receiver

RX-range: 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 35 W, Medium: 10 W, Low: 5 W

Connections

Antenna: N-type
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 600 mA
TX: Max 10 A

Physical

Dimensions (w×h×d): 140 × 40 × 160 mm (5.51 × 1.57 × 6.30 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Mobile
Manufactured: Between 1994 and 199x

Other features

Usage: Amateur / Ham radio operators
Features + options: 9K6 packet ready.
Accessories: -
RigReference ID: 3403
MPN: KENWOOD-TM-000451E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TM-451E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Kenwood TM-451E is around:

USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
