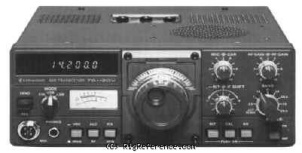

The Kenwood TS-120S is designed for SSB and CW modes in the 80 through 10 meter ham bands plus WWV 15 MHz receive. All solid-state technology is input rated at 200 PEP input on SSB, 160W DC on CW (160 and 140W on 10 m). The TS-120S features a 100 Hz digital display with analog subdial. (This transceiver does not have general coverage receive).
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- 4 channels in 1 bank(s)
Receiver
- RX-range
- 10-80 m + WWV
- Modulations
- CW USB LSB
- Sensitivity
- 0.5 µV (10 dB S+N/N)
- Selectivity
- SSB: 2.4 kHz (-6 dB), 4.2 kHz (-60 dB)
CW: 500 Hz (-6 dB), 1.5 kHz (-60 dB), with optionalo CW filter - Filters
- 500 Hz CW
- Receiver system
- Single conversion superheterodyne
- IF-frequencies
- 8.83 MHz
- Image rejection
- 50 dB
- Audio output
- 1.5 W at 10% distortion / 8 ohms
Transmitter
- TX-range
- 10-80 m
- Modulations
- CW USB LSB
- RF-output
- SSB: ±10 W PEP (25 W PEP input)
CW: ±10 W DC (20 W DC input)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 2 A
- TX
- 5 A
Physical
- Dimensions (w×h×d)
- 241 × 94 × 235 mm (9.49 × 3.70 × 9.25 in)
- Weight
- 4.90 kg (10.8 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1978 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Vox
NB
RIT
Digital readout - Accessories
- Antenna tuner
Ham clock, 24 hour type
High performance dynamic headphones, 8 ohms
Deluxe headphones, 8 ohms
Mobile mount
Dynamic hand microphone. 50 Kohm
Dynamic hand microphone. 500 ohms
Dynamic desk microphone. 500 ohms or 50 Kohm switchable
Regulated power supply. 13.8 V DC, 4.5 A
Regulated power supply. 13.8 V DC, 20 A
External speaker
External VFO
500 Hz CW narrow filter. IF: 8.83 MHz - RigReference ID
- 3475
- MPN
- KENWOOD-TS-000120V
Manuals, diagrams and brochures
- Kenwood TS-120S Service Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-120S User Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-120V. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TS-120V in Good condition is around:
- USD 336
These estimates are based on the following prices:
