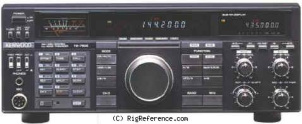

Kenwood TS-790E

General characteristics

HAM bands

2m  70cm

Frequency stability

≤ 3 p.p.m.

Tuning steps

?

Memories

30 channels in bank(s)

Receiver

RX-range

144-146 / 430-440 MHz
1240-1300 MHz option

Modulations

FM   CW   USB   LSB

Sensitivity

FM: 0.22 µV (12 dB SINAD)
SSB/CW: 0.16 µV

Selectivity

?

Filters

?

Receiver system

Single/double/triple/quadruple conversion superheterodyne

IF-frequencies

1st: 10.695/75.925/287.175 MHz
2nd: 0.455/10.695/41.415 MHz
3rd: -/0.455/10.695 MHz
4th: -/-/455 kHz

Image rejection

?

Audio output

1.5 W / 8 ohms @ 10% THD

Transmitter

TX-range

144-146 / 430-440 MHz
1240-1300 MHz option

Modulations

FM   CW   USB   LSB

RF-output

FM: 45/40 W, SSB/CW: 35/30 W, 23cm: 10 W

Connections

Antenna

SO-239 + N-type

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC +/-15%

Current drain RX

2.5 A

TX

Max 15 A

Physical

Dimensions (w×h×d)

342 × 134 × 369 mm (13.46 × 5.28 × 14.53 in)

Weight

9.20 kg (20.3 lbs)

Form factor

Base Station

Manufactured

Between 1988 and 199x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Twin RX

Accessories

-

RigReference ID

3507

MPN

KENWOOD-TS-000790E

Manuals, diagrams and brochures

Kenwood TS-790 A/E Instruction Manual PDF - 1.94 MB, submitted by Wim

Kenwood TS-790 A/E Service Manual PDF - 37.67 MB, submitted by Wim



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-790E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Kenwood TS-790E in Good condition is around:

• USD 462 ~ USD 511
• EUR 550

Price History Chart

These estimates are based on the following prices:
