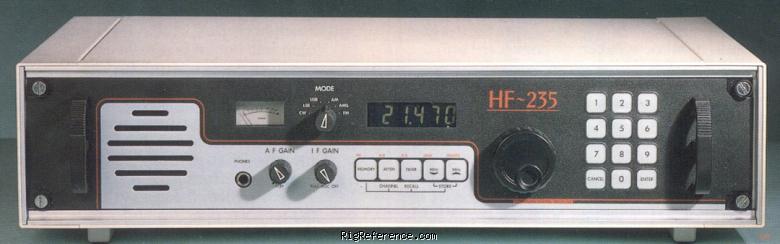

Lowe HF-235 Desktop Shortwave receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

The Lowe HF-235 is an enhanced, rack mounted version of the HF-225. Coverage is 30-30000 kHz in these modes: CW, AM, LSB, USB and FM. The digital LCD readout is to 0.1 kHz (100 Hz). It features 30 Memories, Attenuator, Record Jack, 200 Hz Audio CW Filter, Dual VFOs, keypad, RS232 Port, FM Squelch, Backlit Display, Mute Line, Tone Control, Recorder Activation, Dual Clock Timer, 1 MHz Up-Down Tuning.

Frequency range

RX-range
0.03-30 MHz
TX-range
-
HAM bands
-
Stability
< ±30 Hz in 1 hour typical
Tuning steps
8 Hz / 0.05 kHz
Filters
-

Receiver

Modulations
AM   FM   CW   USB   LSB
Sensitivity
0.5 µV SSB 2-30 Mhz
Selectivity
2.2 kHz 2.3 kHz -6 dB
4.0 kHz 5.9 kHz -6 dB
7.0 kHz 8.8 kHz -6 dB
10 kHz 10.5 kHz -6 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 45 MHz
2nd: 455 kHz
Image rejection
-
Audio output
1.6W 8 ohms 5% THD

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
483 × 89 × 320 mm (19.02 × 3.50 × 12.60 in) 19" rack model
Weight
5.58 kg (12.3 lbs)
Form factor
Base Station
Manufactured
Between 199x and 199x in Great Britain
MPN

Other features

Memories
30 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
PC-control
Accessories
-
