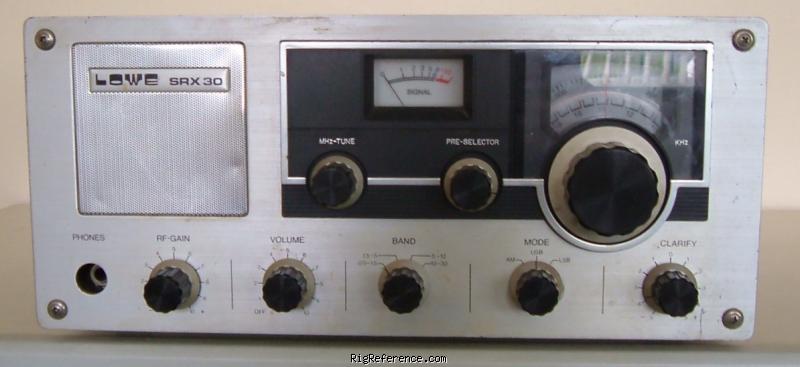

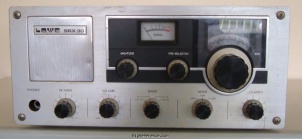

Lowe SRX-30 Desktop Shortwave receiver

 (4.4/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

Appearance similar to the Standard C6500 and Drake SSR-1.

Frequency range

RX-range
0.5-30 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
5.5 / 3 kHz

Receiver

Modulations
AM   USB   LSB
Sensitivity
-
Selectivity
-
Receiver system
Triple conversion, Wadley-loop principle
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239 + Clamps / screws
Impedance
Hi/Z or 50 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
335 × 160 × 270 mm (13.19 × 6.30 × 10.63 in)
Weight
5.50 kg (12.1 lbs)
Form factor
Base Station
Manufactured
Between 1980 and 1982 in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Analog readout
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

This vintage rig has some muscle.

Lowe SRX-30, Desktop Shortwave receiver

Supposedly in 1980 the SRX-30 was a competitor to the Yaesu FRG-7 & Radio Shack DX-300, its price point lying in between those 2 models. I just bought an SRX-30, used and for a decent price. I wasn't sure exactly what to expect. Well...I plugged it in & was copying CW and also the WWV time station -- before I even connected an antenna. No lack of sensitivity on this radio! To be brief: the SRX-30 is one of those 'just a short stretch of wire out the back the radio' type of rigs. It really pulls them in, from MW to 10 meters.

My biggest surprise is that its stable. I mean completely stable. Within 20 minutes of connecting a wire I had excellent SSB copies on 80, 40, 20 meters and the aeronautical & marine bands -- and I never had to touch up the BFO (clarifier). I didn't expect this level of stability at all, I was in fact expecting drift. Which I thankfully didn't get.

This radio has a powerful audio stage, so be careful with the volume control. Medium wave broadcast stations sound excellent, just enough tone to be comfortable on the ears, none of that shrill stuff.

Yes, some outside trash does break in on certain parts of certain bands, but that's pretty normal for a lower priced rig of this vintage. Regardless of that I'm extremely pleased with this older, somewhat rare rig. I do not hesitate to rate this an excellent value for the money spent.

Written by Radio10 on Oct 16, 2012

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2012
USD 185.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Lowe SRX-30. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Lowe SRX-30 might be around:

  • USD 133.00
Price Condition Year User
USD 185.00 Used / Good 2012 Radio10

To submit a price, please login or register an account.
