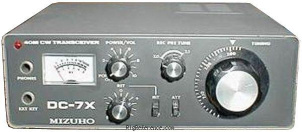

Mizuho DC-7X

Mobile Shortwave Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Frequency range

RX-range
7-7.125 MHz
TX-range
7-7.125 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
CW
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
CW
RF-Output
2 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.5V DC
Current drain RX
55 mA
TX
Max 550 mA

Physical

Dimensions (w×h×d)
202 × 65 × 173 mm (7.95 × 2.56 × 6.81 in)
Weight
1.90 kg (4.2 lbs)
Form factor
Mobile
Manufactured
Between 1975 and 1980 in Japan
MPN
MIZUHO-DC-000007X

Other features

Memories
?
Usage
Amateur / Ham radio operators
