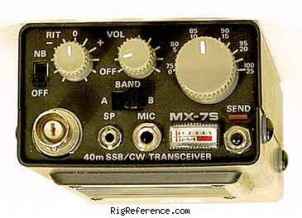

Mizuho MX-7S

HF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Mizuho MX-7S is a HF transceiver covering 7-7.3 MHz with 25 KHz per XTAL. It has a VXO receiver system and a maximum RF output of 2W. The radio requires 9.5V DC power and draws 68 mA in receive mode and a maximum of 600 mA in transmit mode. Dimensions are 142 × 66 × 39 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 7-7.3 MHz (25 KHz per XTAL)
Modulations: CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: VXO. Max 2 XTALS
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 7-7.3 MHz (25 KHz per XTAL)
Modulations: CW SSB
RF-output: Max 2 W

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 9.5V DC
Current drain RX: 68 mA
TX: Max 600 mA

Physical

Dimensions (w×h×d): 66 × 142 × 39 mm (2.60 × 5.59 × 1.54 in)
Weight: 645 gr (1.4 lbs) batteries included
Form factor: Unknown
Manufactured: Between 1983 and 2002 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3601
MPN: MIZUHO-MX-000007S

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Mizuho MX-7S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Mizuho MX-7S is around:

USD 215 ~ USD 400

This estimate is based on similar equipment and may not reflect the exact value of this model.
