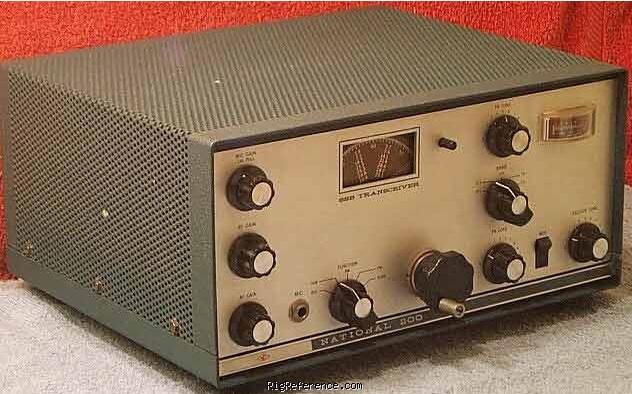

The National Company NC-200 (newer) is a 0.49-30 MHz transceiver in 5 bands supporting CW/SSB and AM modulations. Maximum RF output is 120W PEP for CW/SSB and 30W for AM. Power requirements are Mains 230/115 VAC. Dimensions are 158 × 340 × 280 mm.
General characteristics
- HAM bands
- 80m 40m 20m 15m 11m (CB)
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.49-30 MHz in 5 bands
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 0.49-30 MHz in 5 bands
- Modulations
- -
- RF-output
- CW/SSB: 120W PEP, AM: 30W
Connections
- Antenna
- -
- Impedance
- 500 Ω
- Other
- -
Electrical
- Power requirements
- Mains 230/115 VAC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 340 × 158 × 280 mm (13.39 × 6.22 × 11.02 in)
- Weight
- 6.80 kg (15.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1967 and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3637
- MPN
- NATIONAL-COMPANY-NC-000200-(NEWER)
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used National Company NC-200 (newer). Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the National Company NC-200 (newer) is around:
- USD 125 ~ USD 233
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
