Semcoset Semco

Portable VHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

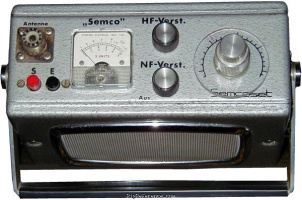

Small, low power 2m transceiver operating on 4 4.5V batteries. Total carrying weight is just over 2kg. AM only. Note the unusual antenna impedance of 60 Ohms and image rejection of only 25 dB! This rig was well know in Germany by the name "Brotdose", breadbox.

New price 1966 in W.Germany: 465.- DM

Frequency range

RX-range
144-146 MHz
TX-range
144-146 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
25 dB
Audio output
1 W

Transmitter

Modulations
AM
RF-Output
3 W PEP ±20%

Connections

Antenna
SO-239
Impedance
60Ω

Electrical

Power requirements
18V DC (4 × 4.5 V batteries)
Current drain RX
55 mA max
TX
125 mA max

Physical

Dimensions (w×h×d)
186 × 80 × 126 mm (7.32 × 3.15 × 4.96 in)
Weight
2.20 kg (4.9 lbs) including batteries
Form factor
Portable
Manufactured
Between 1966 and 196x in W. Germany
MPN
SEMCOSET-SEMCO

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

Semco AM Diagrams (German) submitted by RigReference
Semco AM Manual (German) submitted by RigReference
