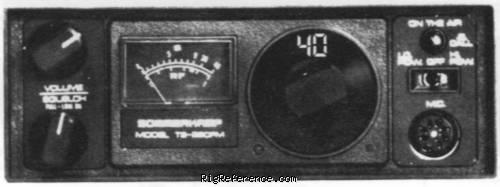

Mobile 2m transceiver covering 144-146 in 25 kHz steps, with automatic repeater shift (R0-R9), digital readout, RF+S-meter, sensible PA protection circuit, electronical RX-TX switching, tone call and powerful 50 Watt signal - for short distance or repeater QSO switchable to 2 Watt.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 25 kHz
- Memories
- 80 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz (80 channels)
- Modulations
- FM
- Sensitivity
- 0.4 µV (12 dB SINAD)
- Selectivity
- 15 kHz (-3 dB), 25 kHz (-70 dB)
- Filters
- ?
- Receiver system
- ? conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- Better than 70 dB
- Audio output
- Internal speaker
Transmitter
- TX-range
- 144-146 MHz (80 channels)
- Modulations
- FM
- RF-output
- High: 50 W (100% duty cycle!), Low: 2 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 10-16V DC
- Current drain RX
- 300 mA
- TX
- Max 8 A
Physical
- Dimensions (w×h×d)
- 156 × 58 × 290 mm (6.14 × 2.28 × 11.42 in)
- Weight
- 2.30 kg (5.1 lbs)
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3991
- MPN
- SOMMERKAMP-TS-000280FM
Manuals, diagrams and brochures
-
No documents available for this particular model.
