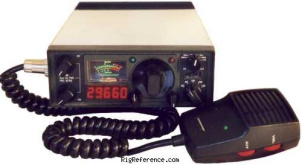

Also known as "The coffeewarmer" Microphone is switchable for use as a speaker-mike. This is an interesting feature I've never seen before in a mobile radio. Very useful in a noisy vehicle.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
100 / 10 / 1 / 0.1 kHz

Receiver

RX-range
26-30 MHz
Modulations
AM   FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
>50 dB
Audio output
?

Transmitter

TX-range
26-30 MHz
Modulations
AM   FM   CW   SSB
RF-Output
High: 100 W (25 W AM), Low: 20 W (5 W AM)

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
11-16V DC
Current drain RX
?
TX
Max 20 A

Physical

Manufactured
Between 197x and 197x in Japan
Dimensions (w×h×d)
156 × 61 × 290 mm (6.14 × 2.40 × 11.42 in)
Weight
?
Form factor
Mobile

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
SOMMERKAMP-TS-000788DX
