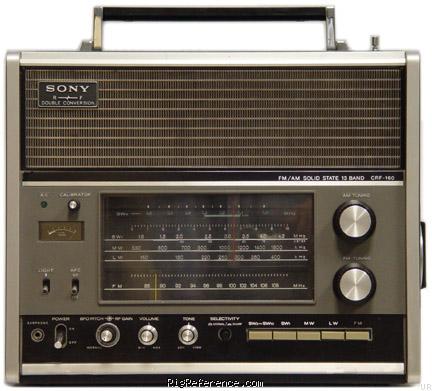

Sony CRF-160 HF/VHF Receiver

 (4.4/5)  Add a story   View all stories (1)   Add to my shack



Frequency range

RX-range
0.15-0.4 / 0.53-1.6 / SW / 88-108 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   W-FM
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
-
Impedance
-

Electrical

Power requirements
?V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Unknown
Manufactured
Between 197x and 19xx in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Sony documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Sony CRF-160. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Sony CRF-160 might be around:

  • USD 0.00
Price Condition Year User
USD 0.00 Good / Used 2010 joshweiss01

To submit a price, please login or register an account.

Stories & reviews

Surprisingly stable, crisp sounding analog portable

Sony CRF-160, HF/VHF Receiver

Having owned a number of high end digital and analog portables such as The National Panasonic RF 5000 and A, Grundig 6001/210, Nordmende Globetrotter, Zenith 1000,3000 and 7000 and the Sony CRF 1, 6800w, 7600G and the 2001 and 2010, I was pleasantly surprised to find how clean sounding and stable the CRF 160 was. The spread band SW tuner has a respectable low noise floor that can fool you into thinking that it has poor sensitivity until an external antenna is connected. It comes to life in a most impressive way. An odd problem became apparent when I initially tried the BFO. The BFO injection level was so high that the IFs were swamped into insensitivity. The manual gain control didn't have enough range to provide proper control over the IFs until I changed resistor values. Why this escaped quality control and the attention of the previous owner I don't know but it works nicely after my mod and is very stable after a few minutes. The switchable IF filter has a reasonable shape considering the time frame. A real surprise is the FM front end which has great capture ratio and adjacent strong channel rejection WITH fine sensitivity! The SW turret tuner is Sony's version of the Grundig Satellit portable innovation but theirs is a bit better minus the gold contacts! I have recapped my 160 as well as adding a SO239 jack on a pigtail for the 50 ohm SW spread band range and the dial pointers now have red and yellow LEDs. Original dial light was retained. Very happy with this set.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2010
USD 0.00
