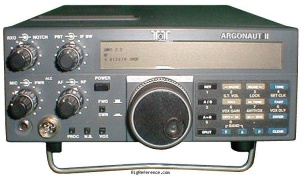

Ten-Tec Argonaut II (535) Desktop Shortwave Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
0.1-30 MHz
TX-range
10-160 m
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
SSB: 0.25 µV (10 dB SN)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
>80 dB
Audio output
-

Transmitter

Modulations
AM   FM   CW   SSB
RF-Output
0-5 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
750 mA max
TX
3 A max

Physical

Dimensions (w×h×d)
248 × 95 × 318 mm (9.76 × 3.74 × 12.52 in)
Weight
4 gr (0.1 oz)
Form factor
Base Station
Manufactured
Between 198x and 198x in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Full QSK. PBT. NB. VOX
Accessories
-
