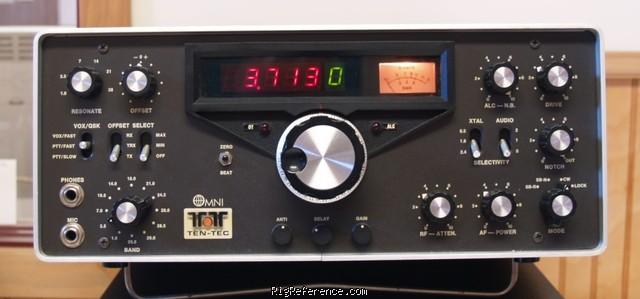

Ten-Tec Omni-C HF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
1.8-30 MHz (amateur bands)
TX-range
1.8-30 MHz (amateur bands)
HAM bands
-
Stability
≤ 15 Hz per °C after 30 minutes warmup
Tuning steps
-
Filters
250 / 500 / 1800 Hz

Receiver

Modulations
CW   USB   LSB
Sensitivity
2.0 µV on 1.8 MHz (10 dB S+N/N)
0.3 µV on 28 MHz (10 dB S+N/N)
Selectivity
2.4 kHz
Receiver system
-
IF-frequencies
9 MHz
Image rejection
-
Audio output
-

Transmitter

Modulations
CW   USB   LSB
RF-Output
85-100 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
12-14V DC
Current drain RX
850 mA
TX
18.5 A max

Physical

Dimensions (w×h×d)
362 × 140 × 355 mm (14.25 × 5.51 × 13.98 in)
Weight
6.57 kg (14.5 lbs)
Form factor
Base Station
Manufactured
Between 1981 and 19xx
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
