WiNRADiO WR-1500e

Headless HF/VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

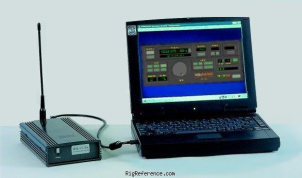

The WinRadio WR-1500e is a medium-range external receiver similar to the WiNRADiO WR-1000e but with enhanced SSB facilities, extended frequency range and improved performance. The frequency range is 150 kHz to 1.5 GHz (the US version excludes cellular frequencies 825-849 and 869-894 MHz).

General characteristics

HAM bands
?
Frequency stability
10 p.p.m. (0 to 60° C)
Tuning steps
1 Hz / 0.01 kHz

Receiver

RX-range
0.15-1500 MHz
Modulations
AM   N-FM   W-FM   USB   LSB
Sensitivity
AM:
0.15-1.5 MHz: 25µV
1.5-1000 MHz: 1µV
1-1.5 GHz: 1.9µV
SSB/CW:
0.15-1.5 MHz: 0.9µV
1.5-1000 MHz: 0.3µV
1-1.5 GHz: 0.4µV
N-FM:
150 kHz-1.5 GHz: 0.4µV
W-FM:
0.15-30 MHz: -
30-1000 MHz: 1.0µV
1-1.5 GHz: 1.0µV

AM / SSB / CW: 10dB S/N
N-FM / W-FM: 12dB SINAD
Selectivity
SSB/CW: 2.5 kHz @ 6dB
AM: 6 kHz @ 6dB
N-FM: 15 kHz @ 6dB
W-FM: 230 kHz @ 6dB
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
65dB
Audio output
0.2W (8 ohm load)

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
?
Current drain RX
?
TX
-

Physical

Manufactured
Between 199x and 200x
Dimensions (w×h×d)
?
Weight
?
Form factor
Headless

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
RS-232 computer interface
Accessories
?
MPN
WINRADIO-WR-001500E
