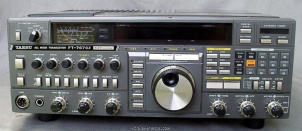

Yaesu FT-767GX Desktop HF/VHF/UHF Transceiver

 (4.2/5)  Add a story   View all stories (4)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
10-160 m + WARC
50-54 / 144-146 / 430-440 optional modules
TX-range
10-160 m + WARC
50-54 / 144-146 / 430-440 optional modules
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   FM   CW   SSB
RF-Output
HF: 100 W, VHF/UHF: 10W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Base Station
Manufactured
Between 1986 and 19xx in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

Yaesu FT-767GX Operation Manual submitted by RigReference

Upload relevant documents

Show other documents.

Stories & reviews

Yaesu 767gx

Yaesu FT-767GX, Desktop HF/VHF/UHF Transceiver

Great radio!...I have used one of these before. I sure wish I had one that had the 2meter and the 440 boards in them. I miss that radio!...Mark KD4QHG

Written by kd4qhg on Jan 7, 2011

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in ???

Yaesu FT-767GX Transceiver

Yaesu FT-767GX, Desktop HF/VHF/UHF Transceiver

Have one with the three modules for 2m / 6m & 70cm I believe was Yaesu's flagship in the late 80s still a sturdy & friendly operating radio.
Said pushes 100w on all HF but true figures are between 109w - 111w.On the modules showing 11watts on all three.
Only downfall is the memory battery's awkward to replace ideal is to add 2x 2032 battery holders at a easy access place to replace them with just four soldering points not rocket science, but will save a lot of time messing around in the future. If your not up to doing the job get someone who is.

Written by m6oxo on Aug 31, 2017

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2017
GBP 0.00

Poor engineering of 767GX

Yaesu FT-767GX, Desktop HF/VHF/UHF Transceiver

So called DC/DC convertor is a small circuit roomed on the dial board.
This circuit makes negative voltages required for VFD display tube and OP AMPs of the tuner.
The circuit represents a small blocking generator. Poorly designed unit in a very tight place what follows to overheat of a small transistor and failure of the whole transceiver.
Repair is possible, but damn troublesome:
One shall remove the board, remove VFD display and then replace bad transistor.
Three years later the situation repeats.

Written by [deactivated user] on Nov 6, 2012

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2004
View all 4 reviews

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Yaesu FT-767GX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Yaesu FT-767GX might be around:

  • USD 299.00
  • EUR 37.00
Price Condition Year User
EUR 600.00 Used / Good 2000 Max Esser
USD 300.00 New / Mint 2019 Jim M.
