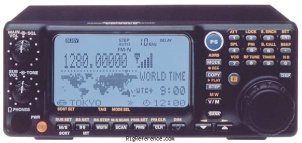

Yaesu VR-5000

Mobile HF/VHF/UHF Scanner / receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Yaesu VR-5000 rigs and spare parts on eBay Find the Yaesu VR-5000 on Amazon
We receive a small fee when you buy through these links, thank you!

Early versions had several problems. Newer versions are improved in both hard- and firmware.

Frequency range

RX-range
0.1-2600 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
0.02 / 0.1 / 0.5 / 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 50 / 100 / 500 kHz
Filters
?

Receiver

Modulations
AM   N-AM   W-AM   N-FM   W-FM   CW   SSB   USB   LSB
Sensitivity
AM (10 dB S/N)
0.2-0.5 MHz: 10.8 µV
0.5-1.8 MHz: 4 µV
1.8-4 MHz: 2.5 µV
4-30 MHz: 1.1 µV
N-FM (12 dB SINAD)
28-30 MHz: 0.35 µV
30-2000 MHz: 0.45 µV
2000-2600 MHz: 0.8 µV
W-FM (12 dB SINAD)
30-2000 MHz: 1.5 µV
SSB/CW (10 dB S/N)
0.2-0.5 MHz: 4.8 µV
0.5-1.8 MHz: 1 µV
1.8-4 MHz: 0.6 µV
4-30 MHz: 0.3 µV
30-2000 MHz: 0.3 µV
2000-2600 MHz: 0.5 µV
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
1W

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50/450Ω

Electrical

Power requirements
13.5V 15 %
Current drain RX
Max 0.7 A
TX
-

Physical

Dimensions (w×h×d)
180 × 70 × 203 mm (7.09 × 2.76 × 7.99 in)
Weight
1.90 kg (4.2 lbs)
Form factor
Mobile
Manufactured
Between 2000 and 200x in Japan
MPN
YAESU-VR-005000

Other features

Memories
2000 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Real-time band-scope
World clock
NB
VCS
Alpha tags
DSP (DSP-1)
Voice synthesizer (FVS-1A)
Voice recording (DVS-4) options
CAT interface
Accessories
?

Manuals, diagrams and brochures

Yaesu VR-5000 brochure submitted by RigReference

Upload relevant documents

Show other documents.
Find the Yaesu VR-5000 user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Yaesu VR-5000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu VR-5000 is around:

  • USD 433.00
  • EUR 716.00
Year Historic price Condition Submitted by
2019 USD 433.78 Used / Good eBay
2015 EUR 750.00 New / Mint F5VLB
2010 USD 380.00 Used / Good eBay
2010 USD 465.00 Used / Good eBay
