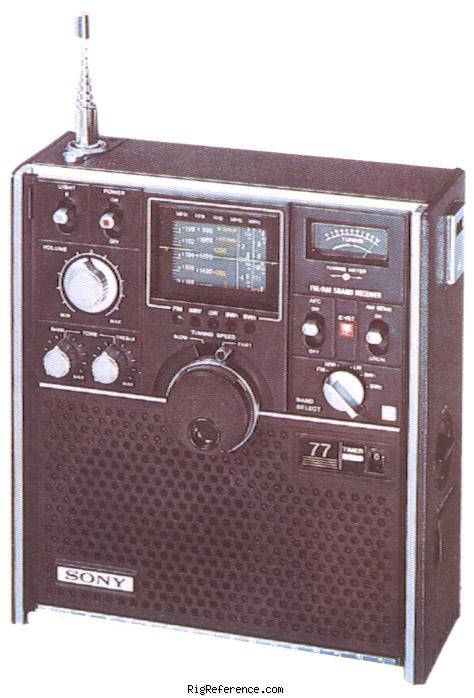

Sony ICF-5800L / Captain 77 Handheld HF/VHF Receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



The Sony ICF-5800L Captain 77 portable receiver covers longwave (150-285 kHz), medium wave (520-1605 kHz), shortwave (1.6-4.5 and 4.5-12 MHz and FM (87.5-108 MHz). There are separate controls for Bass and Treble. There is an AFC switch for FM and a DX/Local switch for shortwave. This radio has a built in timer that will turn the radio on and off within 60 minutes. This radio has a tuning meter plug two tuning speeds. There are external antenna terminals for the FM and shortwave bands. Operation is from four C cells, 6 VDC or optional AC adapter.

The Sony ICF-5500M Captain 55 is similar.

Frequency range

RX-range
150-285 / 520-1605 kHz
1.6-4.5 / 4.5-12 / 87.5-108 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   W-FM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
Single conversion superheterodyne
IF-frequencies
455 kHz
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
Clamps / screws + Built-in sweep
Impedance
-

Electrical

Power requirements
6V DC or mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
210 × 228 × 86 mm (8.27 × 8.98 × 3.39 in)
Weight
-
Form factor
Handheld
Manufactured
Between 197x and 197x in Japan
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Sony documents.
