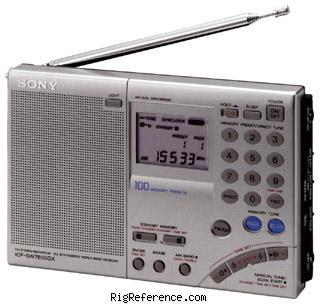

Sony ICF-7600GR Handheld HF/VHF Receiver

 (4.0/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

The Sony® ICF-SW7600GR is a compact, dual conversion, microprocessor-controlled, frequency synthesized general coverage portable receiver. Direct access tuning is provided along with a multifunction LCD digital readout for unsurpassed convenience and accuracy (1 kHz step tuning on longwave, medium wave and shortwave). Just press the numbered keys to match the frequency you want to hear. Manual and automatic scan tuning plus memory scanning is provided. 100 memories are featured for your favorite stations. These memories are non-volatile and therefore will not be lost during the changing of batteries. The ICF-SW7600GR tunes from 150 to 29999 kHz for solid coverage of longwave, medium wave and shortwave. Smooth Single Sideband (SSB) and Morse code reception is available through a switch with separate LSB and USB positions plus fine tuning thumb-wheel. A special Synchronous Detector circuit reduces fading and annoying "beat" frequency interference from adjacent stations as well as distortion due to fading shortwave reception. FM stereo (87.6 - 108 MHz in 50 kHz steps) is provided to the mini stereo headphone jack. A record output jack is included for taping off the air. Advanced features include: dial light, continuously, variable attenuator, 9/10 kHz MW step, "Tune" indicator, keypad lock, 1/5 kHz step tuning, flip-stand, tone switch and external antenna jack. There is also a Sleep function which can be set for 15, 30, 45 or 60 minutes. The side-lit dial light will illuminate the LCD green for 15 seconds when the dial light switch is pressed. This radio has a 24 hour digital quartz clock with dual timer. You can set the radio audio to come on with Timer A and Timer B. The current time is displayed when the radio is off. To view the time while the radio is on simply press the [EXE] key. The time will then display automatically for 9 seconds.

Frequency range

RX-range
0.15-30 / 87.6-108 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
1 kHz
Filters
-

Receiver

Modulations
AM   W-FM   CW   USB   LSB
Sensitivity
-
Selectivity
-
Receiver system
Double conversion superheterodyne
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
Built-in ferrite bar + Built-in sweep
Impedance
-

Electrical

Power requirements
6V DC or 4×AA cells
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
191 × 120 × 32 mm (7.52 × 4.72 × 1.26 in)
Weight
624 gr (1.4 lbs)
Form factor
Handheld
Manufactured
Between 198x and 199x in Japan
MPN

Other features

Memories
100 channels in bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

Excellent portable

Sony ICF-7600GR, Handheld HF/VHF Receiver

This rig is the best SSB receiving portable out there. It could be even better though. The absence of a tuning knob is annoying at times, as is the fixed bandwidth. All in all its good value for its price range.

Written by kk6icp on Apr 6, 2014

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2014
USD 159.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Sony ICF-7600GR. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Sony ICF-7600GR might be around:

  • EUR 40.00
Price Condition Year User
EUR 160.00 New / Mint 2007 HT Performance
