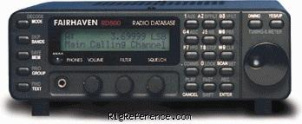

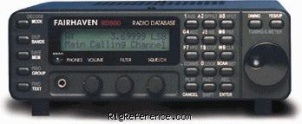

Fairhaven RD500 Desktop HF/VHF/UHF Scanner / receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
0.01-36 / 48-1750 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
5/100 Hz 1/5/6.25/9/10/12.5/25/50 kHz
Filters
SSB: 2.4 kHz Wide AM: 6 kHz Narrow FM: 12.5 kHz

Receiver

Modulations
AM   FM   CW   USB   LSB
Sensitivity
SSB: < 0.1µV (500khz - 500MHz)
AM: 1µV
FM: < 0.3µV (48-860MHz)
FM: < 0.5µV (860-1250MHz)
Selectivity
-
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 45.000 MHz
2nd: 455 kHz
Image rejection
-
Audio output
2W

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239 + N-type
Impedance
50 Ω

Electrical

Power requirements
12V DC
Current drain RX
500mA
TX
-

Physical

Dimensions (w×h×d)
205 × 65 × 193 mm (8.07 × 2.56 × 7.60 in)
Weight
2.00 kg (4.4 lbs)
Form factor
Base Station
Manufactured
Between 1997 and 1998 in UK
MPN

Other features

Memories
54682 channels in 234 bank(s) @ 50 channels/second
Usage
Amateur / Ham radio operators
Features + options
PC programmable (RS-232)
Remote control
Digital sound recording
Accessories
-
