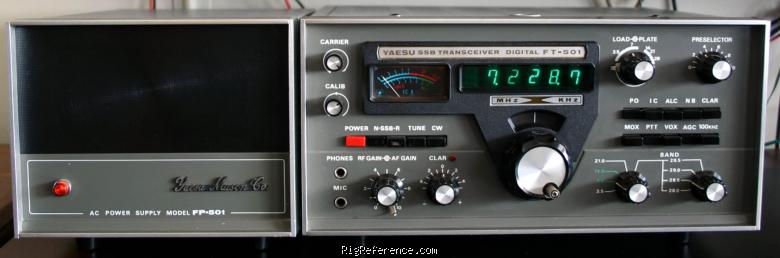

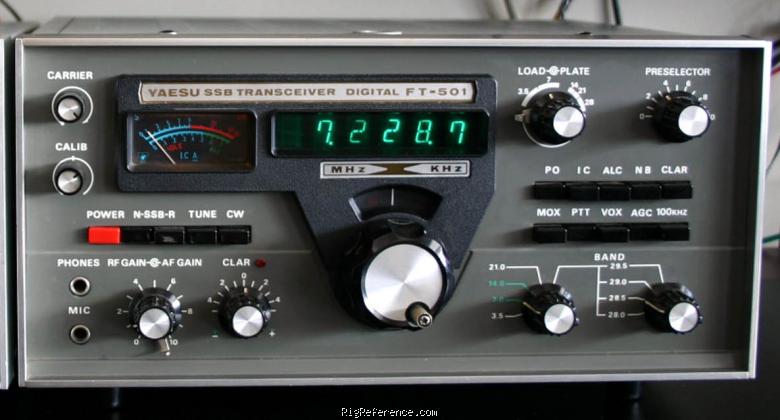

Yaesu FT-501

Desktop Shortwave Transceiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

Find Yaesu FT-501 rigs and spare parts on eBay Find the Yaesu FT-501 on Amazon
We receive a small fee when you buy through these links, thank you!

Uses early (VFD) Vacuum Florescent digital display (Nixie tubes).

Frequency range

RX-range
80-10m
TX-range
80-10m
HAM bands
80m  40m  20m  15m  10m
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
CW   USB   LSB
Sensitivity
0.5 µV (20 dB S/N)
Selectivity
2.4 kHz (-6 dB)
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
2 W

Transmitter

Modulations
CW   USB   LSB
RF-Output
200W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
Mains (110/240 V AC)
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
350 × 160 × 300 mm (13.78 × 6.30 × 11.81 in)
Weight
22.00 kg (48.5 lbs)
Form factor
Base Station
Manufactured
Between 197x and 197x in Japan
MPN
YAESU-FT-000501

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Yaesu FT-501 user manuals on eBay #ad

Reviews & stories

Monster radio

Yaesu FT-501, Desktop Shortwave Transceiver

I love my FT501. One day it is going to kill me, but I'll still have it buried with me. It doesn't do AM, no WARC bands and no 160m band. The 6KD6 valves used in the finals are EXTREMELY expensive to replace. On the other hand, it is one of the most beautiful radios ever built, in my opinion. It puts out an enormous signal well over 280 watts and modulation is excellent. The construction is solid, it is very heavy and buttons practically indestructible. It can take a punch and after 40+ years, mine is still working perfectly, despite some heavy handling at times. It is a bit of a Frankenstein mix of transistors and vacuum tubes, but it is a well thought through mix. That Nixie tube display is amazing.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 1992
USD 240.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Yaesu FT-501. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-501 is around:

  • USD 6.00
Year Historic price Condition Submitted by
1992 USD 240.00 Used / Good sjaarsveldt
