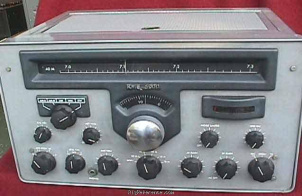

RME 6900 Desktop Shortwave receiver

 (5.0/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

The RME 6900 offers ham-band-only (1959-style) coverage of 80 through 10 meters plus WWV in a 12-tube, double-conversion receiver. Selectivity is implemented in the 57 kHz 2nd IF circuits. Price when new: USD 349.

Frequency range

RX-range
10-160m, incl. 30m + WWV
TX-range
-
HAM bands
160m  80m  40m  30m (WARC)  20m  15m  11m (CB)
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
AM   CW   SSB
Sensitivity
-
Selectivity
-
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: ?
2nd: 57 kHz
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
-
Weight
-
Form factor
Base Station
Manufactured
Between 1959 and 1962
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

RME 6900 Nice Receiver

RME 6900, Desktop Shortwave receiver

I came into this Radio by way of trade for some
other equipment.(In Other words, I got it for Nothing) It only needed some cleaning up as the radio still played very well. It had been in storage at a Local T.V. Shop (Previous Owner)
so it was well cared for...and used very little if at all. (Your Basic Time capsule Radio)

Some notes: It has Rugged construction, Smooth Main tuning, smooth Band change switch. Styling is a bit strange, almost alien like, when compared to other radios of its era. At a glance it is very similiar to a Collins 75-A4. I wouldn't be surprised if this was made as a "knock-off" version. The Rf gain gets a little sensitive at Maximum. But that would be my only downgrade. Serial number on it is #181 Pretty early # so it was probably made in Late 1959.

73s DE NØFMO

Written by nofmo on Jul 27, 2011

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 2011
USD 0.00
