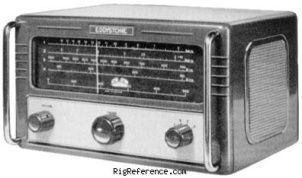

Eddystone 870

Desktop Shortwave receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Eddystone 870 rigs and spare parts on eBay Find the Eddystone 870 on Amazon
We receive a small fee when you buy through these links, thank you!

Ranges: .15-.38, .54-1.5, 1.95-6.3 and 5.9-18 MHz. Note reception gaps from .38-.54 and 1.5-1.95 MHz. This simple receiver was designed for home or shipboard cabin use. It was also advertised as a semi-portable. It has a two toned metal cabinet.

The model 870A (1962-1963, new £33-35) is similar but with a fifth range extending coverage up to 24 MHz. The 870A ranges are: .15-.38, .51-1.4, 1.3-3.5, 3.2-7.5 and 7.5-24 MHz.

Frequency range

RX-range
0.15-18 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM
Sensitivity
?
Selectivity
?
Receiver system
Single conversion, 5 tubes
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
-
Impedance
?

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
279 × 162 × 208 mm (10.98 × 6.38 × 8.19 in)
Weight
5.20 kg (11.5 lbs)
Form factor
Base Station
Manufactured
Between 1957 and 1959 in Great Britain
MPN
EDDYSTONE-000870

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

Eddystone-870 Instruction Manual submitted by RigReference
