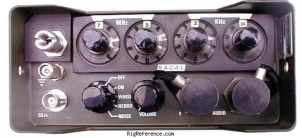

Racal TRA-967

Manpack VHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

The Racal TRA-967 was primarily designed as a manpack but can be used as a fixed or as a vehicle station. Provides VHF Narrow Band FM Transmission and Reception in the 36-76 MHz frequency range with 25 kHz channel spacing. A total of 1600 synthesiser-controlled channels are available with in the frequency range, includes a pre-tuned antenna-matching unit. Power output more than 1 Watt. Quick frequency selection using rotary controls. The four frequency digits are illuminated by Tritium Beta Lights, which do not require a power supply. Re-broadcast facilities are also incorporated within the set. The TRA-967 is completely sealed and is Rust and Waterproof. Operates from 12V DC Battery.

Frequency range

RX-range
36-76 MHz
TX-range
36-76 MHz
HAM bands
?
Stability
?
Tuning steps
25 kHz
Filters
?

Receiver

Modulations
N-FM
Sensitivity
12dB for 1 µV EMF with 3 kHz deviation at 1 kHz
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
50 mW

Transmitter

Modulations
N-FM
RF-Output
>1 W

Connections

Antenna
BNC + Proprietary (military)
Impedance
50Ω

Electrical

Power requirements
12V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
166 × 76 × 285 mm (6.54 × 2.99 × 11.22 in)
Weight
3.50 kg (7.7 lbs)
Form factor
Portable
Manufactured
Between 19xx and 19xx in Great Britain
MPN
RACAL-TRA-000967

Other features

Memories
1600 channels in 1 bank(s)
Usage
Military communication
