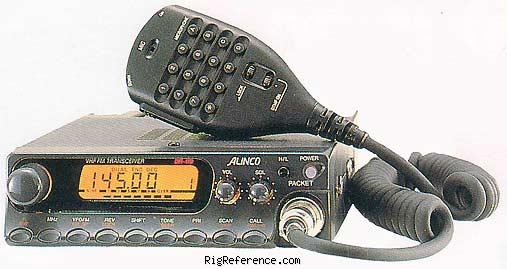

The Alinco DR-119 is a mobile VHF transceiver. It covers 144-146 MHz (DR-119E) or 144-148 MHz (DR-119T). The receiver system is double conversion superheterodyne with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. RF output is selectable at 5 / 50 W. Audio output is 2 W into 8 ohm @ 10% THD. The DR-119 requires 13.8V DC power. It features a DTMF encoder (US version). Dimensions are 40 × 140 × 170 mm and the weight is 1.1 kg. Current drain is 0.5 A in receive mode and 10 A max in transmit mode.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz (DR-119E)
144-148 MHz (DR-119T) - Modulations
- FM
- Sensitivity
- 0.16 µV (12 dB SINAD)
- Selectivity
- ±6 kHz (-6 dB)
±12 kHz (-60 dB) - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 2 W into 8 ohm @ 10% THD
Transmitter
- TX-range
- 144-146 MHz (DR-119E)
144-148 MHz (DR-119T) - Modulations
- FM
- RF-output
- 5 / 50 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.5 A
- TX
- 10 A max
Physical
- Dimensions (w×h×d)
- 140 × 40 × 170 mm (5.51 × 1.57 × 6.69 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 200x and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DTMF encoder (US version)
- Accessories
- -
- RigReference ID
- 5149
- MPN
- ALINCO-DR-000119
