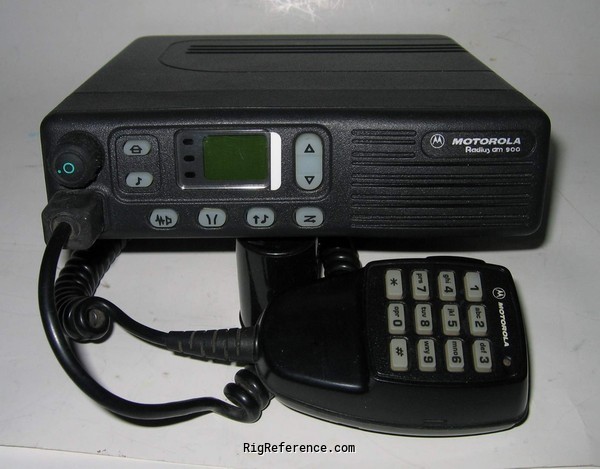

Motorola GM-900 Mobile VHF/UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
68-88 MHz
136-174 MHz
403-470 MHz
TX-range
68-88 MHz
136-174 MHz
403-470 MHz
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
FM   N-FM
Sensitivity
< 0.3 µV (12 dB SINAD) ETS
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
70 dB
Audio output
-

Transmitter

Modulations
FM   N-FM
RF-Output
5/25 W

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
168 × 44 × 188 mm (6.61 × 1.73 × 7.40 in)
Weight
-
Form factor
Mobile
Manufactured
Between 199x and 20xx
MPN

Other features

Memories
-
Usage
Commercial / Land mobile communication
Features + options
Select 5/5-tone selcall, CTCSS/PL
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Motorola documents.
