Heathkit DX-100B Desktop Shortwave Transmitter

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

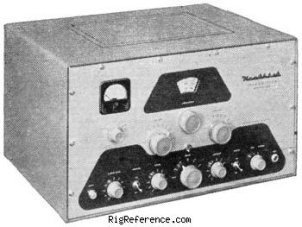

The Heathkit DX-100B is a rugged CW / phone transmitter from the early 1960's. The one-piece formed cabinet features a convenient top-access hatch for changing crystals and making other adjustments. Featured are a built-in VFO, modulator, and power supply, complete shielding to minimize TVI, and a pi network output coupling to match impedances from 50 to 72 ohms. RF output is in excess of 100 watts on phone and 120 watts on CW. For operating convenience single-knob bandswitching and illuminated VFO dial on meter face are provided.

Frequency range

RX-range
-
TX-range
10-160 m
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
-
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
AM   CW
RF-Output
AM: Max 125 W, CW: Max 140 W

Connections

Antenna
-
Impedance
50/600 Ω

Electrical

Power requirements
Mains
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
526 × 350 × 406 mm (20.71 × 13.78 × 15.98 in)
Weight
45.36 kg (100.1 lbs)
Form factor
Base Station
Manufactured
Between 196x and 19xx in USA
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
Built-in VFO, modulator, and power supply
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
