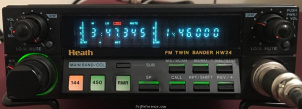

Heathkit HW-24 Mobile VHF/UHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
144-148 / 438-450 MHz
TX-range
144-148 / 438-450 MHz
HAM bands
2m  70cm
Stability
-
Tuning steps
5 / 10 / 12.5 / 20 / 25 kHz
Filters
-

Receiver

Modulations
FM
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
FM
RF-Output
1/10 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8 V DC
Current drain RX
600 mA
TX
3.4 A max

Physical

Dimensions (w×h×d)
150 × 50 × 180 mm (5.91 × 1.97 × 7.09 in)
Weight
1.80 kg (4.0 lbs)
Form factor
Mobile
Manufactured
Between 198x and 199x in Japan by Standard/Marantz
MPN

Other features

Memories
20 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
