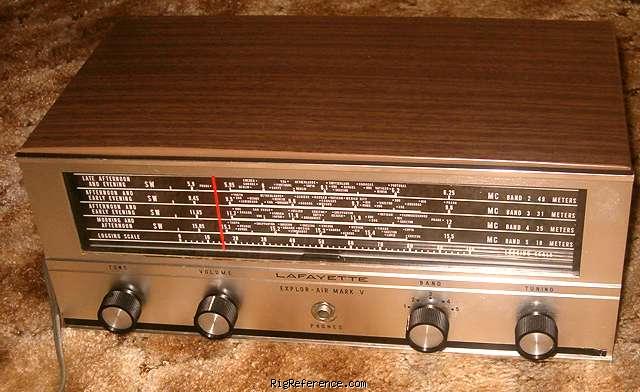

Lafayette Explor-Air Mark V

General characteristics

HAM bands

160m  80m  40m  20m  15m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.55-1.6 / 5.9-6.25 / 9.45-9.8 / 11.45-12 / 15.05-15.5 MHz

Modulations

AM   CW

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Single conversion

IF-frequencies

?

Image rejection

?

Audio output

Built-in 4" speaker

Connections

Antenna

SO-239

Impedance

50/75Ω

Other

-

Electrical

Power requirements

Mains (105-125 V AC)

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

356 × 152 × 203 mm (14.02 × 5.98 × 7.99 in)

Weight

4.90 kg (10.8 lbs) shipping weight

Form factor

Base Station

Manufactured

Between 196x and 197x in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

5423

MPN

LAFAYETTE-EXPLOR-AIR-MARK-V

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Lafayette Explor-Air Mark V. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Lafayette Explor-Air Mark V is around:

• USD 140 ~ USD 260

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
