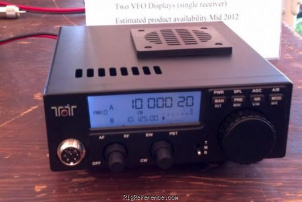

Ten-Tec 539 Mobile Shortwave Transceiver

 (4.8/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
160-10 m except 60 and 12 m
TX-range
160-10 m except 60 and 12 m
HAM bands
-
Stability
+/- 0.5 p.p.m. over operating temperature
Tuning steps
10, 100, 1000 Hz, speed sensitive, VFO Lock
Filters
100 built-in DSP filters from 100 – 6000 Hz BW Standard 2.5 kHz roofing filter included

Receiver

Modulations
AM   CW   USB   LSB   FSK   AFSK
Sensitivity
Typical receiver sensitivity: < 1 µV
SSB Better than 0.7uv (0.5 µV Typ), 2.4 kHz, 10 dB SINAD
AM : Better than 4 µV, (2.0 µV Typ) 30% Mod, 6 kHz BW, 10 dB SINAD
Selectivity
-
Receiver system
DSP (Digital Signal Processing)
IF-frequencies
1st: 9.0018 MHz
2nd: 22.2 kHz
3rd: 0 Hz (DSP)
Image rejection
74 dB typical
Audio output
1.3 Watts into 8 ohm, <3% THD

Transmitter

Modulations
AM   CW   USB   LSB   FSK   AFSK
RF-Output
1 - 10 W

Connections

Antenna
SO-239
Impedance
50 Ω

Electrical

Power requirements
9.5-14 V DC
Current drain RX
550 mA
TX
3 A max

Physical

Dimensions (w×h×d)
165 × 57 × 193 mm (6.50 × 2.24 × 7.60 in)
Weight
1.63 kg (3.6 lbs)
Form factor
Mobile
Manufactured
Between 2011 and 20xx
MPN

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Tri-color display
DSP
Noise Reduction / Noise Blanker
AGC
RIT / XIT
2 VFO displays
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.

Stories & reviews

excellent radio

Ten-Tec 539, Mobile Shortwave Transceiver

great great radio,also work well in digital mode
va2ge

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2017
