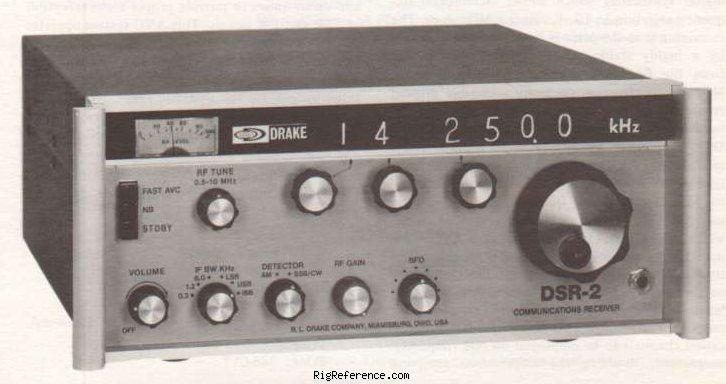

The Drake DSR-2 is a desktop shortwave receiver covering 0.1-30 MHz. It features double/triple conversion receiver system, 6/2.4/1.2/0.3 kHz filters (optional filters available), and Nixie tube display. Image rejection is ≥ 60 dB below 10 MHz and ≥ 50 dB above 10 MHz. The audio output is 2 W @ 5% THD. Frequency stability is less than 200 Hz per 8 hour at 0-40 °C and ±10% variation in line voltage after 0.5 hour warmup. Tuning steps are 10 / 1 MHz / 100 kHz. The IF output frequency is 50 kHz. The receiver includes BFO, noise blanker, and AVC (Automatic Volume Control). It weighs 7.7 kg and requires 120/240 V AC ± 10% single phase 50~420 Hz power. Dimensions are 140 × 340 × 380 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- Less than 200 Hz per 8 hour at 0-40 °C and ±10% variation in line voltage after 0.5 hour warmup
- Tuning steps
- 10 / 1 MHz / 100 kHz
- Memories
- ?
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM CW USB LSB ISB RTTY
- Sensitivity
- 0.01-0.5 MHz
< 4 µV for 10 dB SINAD @ 2.4 kHz SSB
< 25 µV for 10 dB SINAD @ 6 kHz AM
0.5-30 MHz
< 0.3 µV for 10 dB SINAD @ 2.4 kHz SSB
< 2.0 µV for 10 dB SINAD @ 6 kHz AM - Selectivity
- 6 kHz @ -6 dB, 11.5 kHz @ -60 dB
2.4 kHz @ -6 dB, 4.3 kHz @ -60 dB
1.2 kHz @ -6 dB, 2.4 kHz @ -60 dB
0.3 kHz @ -6 dB, 0.6 kHz @ -60 dB - Filters
- 6 / 2.4 / 1.2 / 0.3 kHz Optional filters available
- Receiver system
- Double / triple conversion
- IF-frequencies
- Output: 50 kHz
- Image rejection
- ≥ 60 dB below 10 MHz ≥ 50 dB above 10 MHz
- Audio output
- 2 W @ 5% THD
Connections
- Antenna
- SO-239
- Impedance
- 1000 / 50Ω
- Other
- -
Electrical
- Power requirements
- 120 / 240 V AC ± 10% single fase 50~420 Hz
- Current drain RX
- 35 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 340 × 140 × 380 mm (13.39 × 5.51 × 14.96 in)
- Weight
- 7.70 kg (17.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1971 and 19xx
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- Nixie tube display
BFO
Noise blanker
AVC (Automatic Volume Control - Accessories
- -
- RigReference ID
- 5581
- MPN
- DRAKE-DSR-000002
