Lowe PR-150 Pre-selector | Pre-amp

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

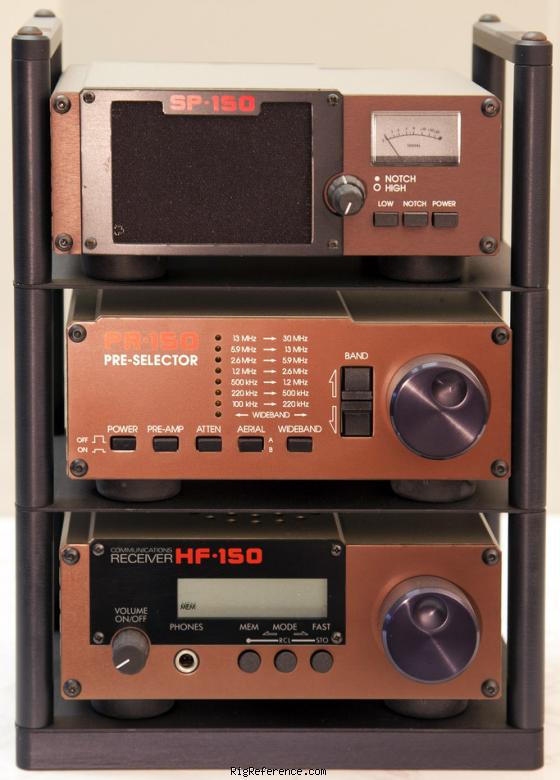

The Lowe PR-150 pre-selector and pre-amp is an accessory for the Lowe HF-150 receiver. It covers 100 kHz to 30 MHz in seven bands. Each band represents a dual-tank LC filter circuit, each of which can tune over 2.5:1 frequency range. each filter is passive. For additional gain, the built in UHF bipolar transistor preamp gives low noise performance with high dynamic range. The preamp may be turned on or off. The PR-150 also features an Attenuator and A/B antenna switch. It is built in a very solid metal alloy case. The rear panel has Antenna A input (SO-239 or Hi-Z terminals) and Antenna B input (Hi-Z terminals). Output to the receiver is 50 ohm SO-239.

Frequency range

RX-range
0.1-30 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
-
Filters
-

Receiver

Modulations
All mode
Sensitivity
-
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
-

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
SO-239 + Hi-Z
Impedance
50Ω

Electrical

Power requirements
12 V DC
Current drain RX
50 mA
TX
-

Physical

Dimensions (w×h×d)
185 × 80 × 175 mm (7.28 × 3.15 × 6.89 in)
Weight
-
Form factor
Mobile
Manufactured
Between 199x and 199x in Great Britain
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
