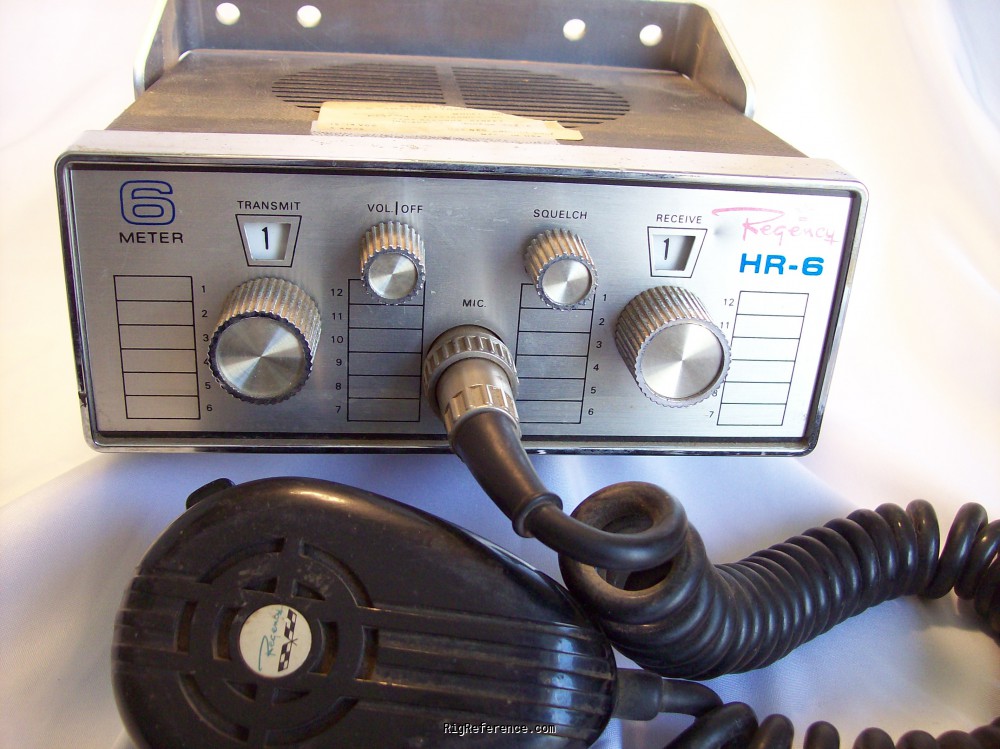

The Regency HR-6 is an all-transistor, 12 channel FM transceiver designed for use in the 6-meter (52-54 MHz) Amateur Band. Its receiver section is a double-conversion, super-heterodyne type with plug-in crystal-controlled frequency selection. Receiver channel selection is independent from transmitter channel selection.

General characteristics

HAM bands
6m
Frequency stability
?
Tuning steps
Channelized, x-tal

Receiver

RX-range
52-54 MHz (6 m)
Modulations
FM
Sensitivity
0.35 µV (20 dB quieting)
Selectivity
16 kHz @ -6 dB
32 kHz @ -50 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
10.7 MHz / 455 kHz
Image rejection
60 dB
Audio output
3 W

Transmitter

TX-range
52-54 MHz (6 m)
Modulations
FM
RF-Output
25 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
380 mA
TX
4.5 A

Physical

Manufactured
Between 197x and 197x in USA
Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile

Other features

Memories
12 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
REGENCY-HR-000006

Manuals, diagrams and brochures

Regency HR-6 Manual submitted by RigReference

Upload relevant documents

Show other documents.
Find the Regency HR-6 user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Regency HR-6. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Regency HR-6 is around:

  • USD 42.00
Year Historic price Condition Submitted by
2019 USD 43.00 Used / Poor eBay
