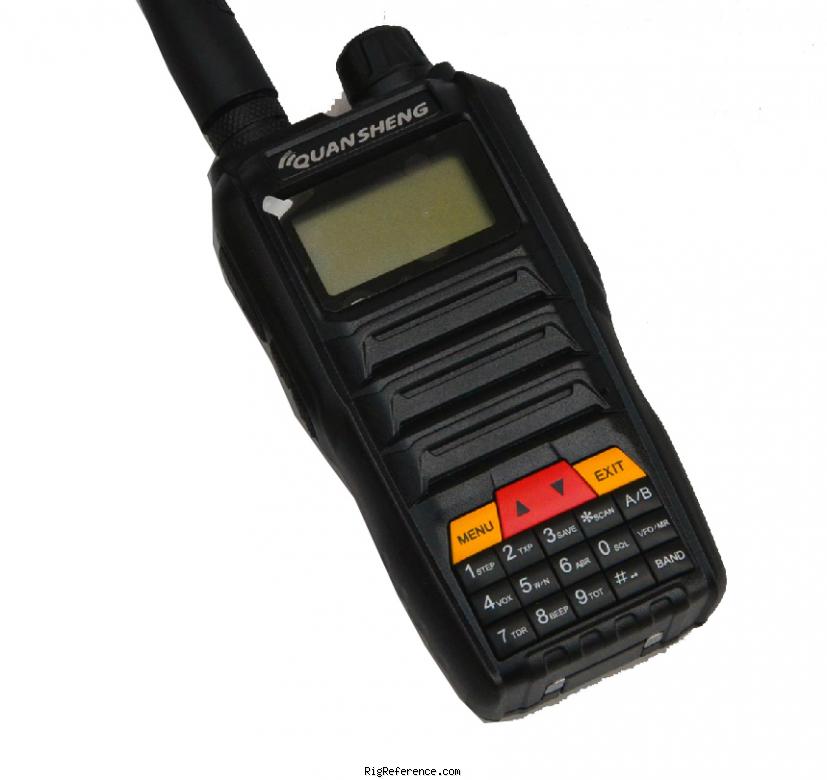

Quansheng TG-620 Dual-band VHF/UHF transceiver

 (4.4/5)  Add a story   View all stories (1)   Add to my shack



Frequency range

RX-range
136-174 / 245-246 or 400-480 MHz
TX-range
136-174 / 245-246 or 400-480 MHz
HAM bands
2m  1.25m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
25 / 12.5 kHz
Filters
-

Receiver

Modulations
FM
Sensitivity
≤ 0.25 / 0.28μV
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
≤ 0.5W

Transmitter

Modulations
FM
RF-Output
4-5 W

Connections

Antenna
-
Impedance
50Ω

Electrical

Power requirements
7.2 V DC (2000 mAh Li-ion)
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
117 × 57 × 34 mm (4.61 × 2.24 × 1.34 in) without antenna
Weight
220 gr (7.8 oz)
Form factor
Handheld
Manufactured
Between 2013 and 20xx in China
MPN

Other features

Memories
128 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other Quansheng documents.

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Quansheng TG-620. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Price Condition Year User

To submit a price, please login or register an account.

Stories & reviews

Its a pretty nice Chinese Rig

Quansheng TG-620, Dual-band VHF/UHF transceiver

My wife and I both have Baofeng's for some time now. My wife won this little TG-620 at a hamfest. We have had it about six months and it was still in the box. The battery came up fine. The program seems to copy the Baofeng format. The audio is way better than the Baofeng, sounds like it is a quality radio. The Baofeng is sort of raspy like a bad speaker in both of them. The Quansheng must have better audio circuitry or maybe a little bass mixed in. It reall sounds good. Transmit wise it has a watt more than the Baofeng. I am not bashing the Baofeng I often tell people on the air that I have never heard a bad on on the air.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2014
USD 0.00
