Expert Electronics SunSDR-MB1

Desktop SDR transceiver | 100 W | HF / 2/ / 6m

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

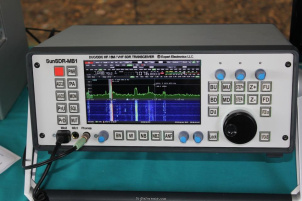

The Expert Electronics SunSDR-MB1 is the first stand-alone rig made by Expert Electronics LLC; it does not require an expernal PC to operate. The rig is built around a Micro-TX Intel Core i5 PC running Windows 7 or Ubuntu Linux. The front is dominated by a 7" LCD screen, a HDMI connector allows external displays to be connected. The complete front panel (all buttons) is programmable by the user.

Frequency range

RX-range
0.09-65 / 95-148 MHz
TX-range
0-160 MHz
HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  10m
Stability
?
Tuning steps
Software defined
Filters
?

Receiver

Modulations
All mode   Multiple (Software defined)
Sensitivity
?
Selectivity
?
Receiver system
SDR
IF-frequencies
Software defined
Image rejection
?
Audio output
?

Transmitter

Modulations
All mode
RF-Output
HF: 100 W, VHF: 30 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
12-15V DC or mains
Current drain RX
1 A
TX
5 A max

Physical

Dimensions (w×h×d)
320 × 140 × 250 mm (12.60 × 5.51 × 9.84 in)
Weight
10.00 kg (22.1 lbs)
Form factor
Base Station
Manufactured
Between 2013 and 201x in Russia
MPN
EXPERT-ELECTRONICS-SUNSDR-MB000001

Other features

Memories
10000 channels in 10000 bank(s)
Usage
Amateur / Ham radio operators
Features + options
7" LCD, 1280x800 pixels
HDMI connector for external display
2 USB connectors
RS-232 (serial) / RJ-45 (ethernet)
WiFi optional
GPS optional
ATU optional
