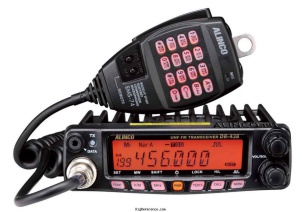

Alinco DR-438 UHF-FM transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Frequency range

RX-range
400-470 MHz
TX-range
400-470 MHz
HAM bands
-
Stability
± 2.5 p.p.m.
Tuning steps
2.5 / 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 25 / 30 / 50 kHz
Filters
-

Receiver

Modulations
FM   N-FM   GMSK
Sensitivity
FM: 0.25 µV
FM-N: 0.35 µV
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
≥ 70 dB
Audio output
> 2 W @ 10%

Transmitter

Modulations
FM   N-FM   GMSK
RF-Output
45/25/10 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
145 × 47 × 190 mm (5.71 × 1.85 × 7.48 in)
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 2014 and 20xx
MPN

Other features

Memories
200 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Accessories
-
