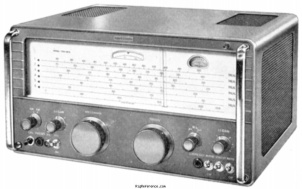

Eddystone 770U / MkII Desktop VHF/UHF receiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Improved model of 770U in new cabinet and with integrated crystal calibrator, linear dial bar, push-pull audio output.

Frequency range

RX-range
150-180 / 180-220 / 220-270 / 270-330 / 330-400 / 400-500 MHz
TX-range
-
HAM bands
-
Stability
≤ 1 kHz per °C temperature change after 15 minutes warm-up
Tuning steps
-
Filters
-

Receiver

Modulations
AM   FM
Sensitivity
Better than 10 µV (S/N 15 dB)
Selectivity
20 kHz @ -6 dB / 50 kHz @ -20 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 50 MHz
2nd: 5.2 MHz
Image rejection
-
Audio output
2.5 W

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
-
Impedance
75Ω

Electrical

Power requirements
Mains (100; 200; 230 V)
Current drain RX
90 VA
TX
-

Physical

Dimensions (w×h×d)
425 × 222 × 346 mm (16.73 × 8.74 × 13.62 in)
Weight
23.60 kg (52.1 lbs)
Form factor
Base Station
Manufactured
Between 1964 and 1969 in Great Britain
MPN

Other features

Memories
-
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
