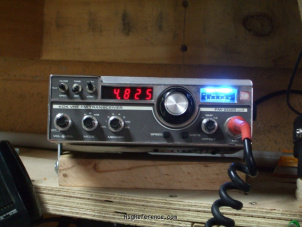

KDK FM-2025A/E Mk II Mobile VHF Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack

Image wanted!



Frequency range

RX-range
143.000-148.995 MHz (A)
144.000-148.9875 MHz (E)
TX-range
143.000-148.995 MHz (A)
144.000-148.9875 MHz (E)
HAM bands
-
Stability
-
Tuning steps
5 or 12.5 kHz depending on version. Can be reprogrammed by chaning internal diode matrix in any multiple of 5 kHz from 5-40 kHz
Filters
-

Receiver

Modulations
FM
Sensitivity
S/N ≤ 35 dB: 1uv
S/N ≤ 20 dB: 0.35 µV
SINAD ≤ 10%: 0.5 µV
Selectivity
± 6 kHz at -6 dB
± 16 kHz at -60 dB
Receiver system
Double superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 kHz
Image rejection
≥ 70 dB
Audio output
≥ 1.5 W @ 10% THD into 8 Ohms

Transmitter

Modulations
FM
RF-Output
High: 25 W, Low: 3 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC
Current drain RX
600 mA max
TX
6.5 A max

Physical

Dimensions (w×h×d)
180 × 60 × 195 mm (7.09 × 2.36 × 7.68 in) body only
Weight
2.25 kg (5.0 lbs) body only
Form factor
Mobile
Manufactured
Between 1980 and 198x
MPN

Other features

Memories
10 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

No documents available for this particular model.
