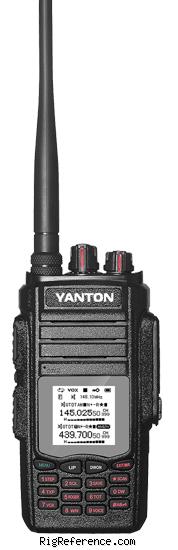

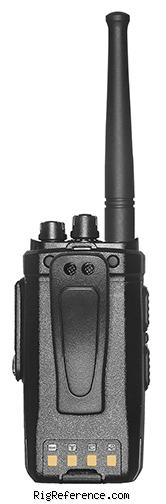

Yanton T-650UV 10W Handheld Dual-band Transceiver

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Similar to the Yanton T-650 but with LCD-display and more channel memories.

Frequency range

RX-range
136-174 / 400-480 / 450-520 MHz
TX-range
136-174 / 400-480 / 450-520 MHz
HAM bands
2m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
12.5 / 25 kHz
Filters
12.5 / 25 kHz

Receiver

Modulations
FM   N-FM
Sensitivity
< 0.20 µV (12 dB SINAD)
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
500 mW

Transmitter

Modulations
FM   N-FM
RF-Output
10 / 5 / 2 W

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
7.4 V DC, 1500 mAh Li-ion Battery
Current drain RX
100 mA max
TX
1 A max

Physical

Dimensions (w×h×d)
115 × 65 × 35 mm (4.53 × 2.56 × 1.38 in)
Weight
255 gr (9.0 oz)
Form factor
Handheld
Manufactured
Between 201x and 201x in China
MPN

Other features

Memories
999 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Duplex repeater (UHF to VHF or VHF to UHF)
Color display
CTCSS / DCS
DTMF / PTT ID
VOX on/off, VOX level setting, VOX delay time setting
PC Programmable
Wire Clone
