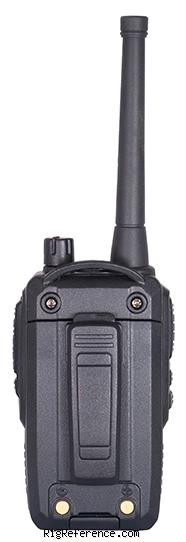

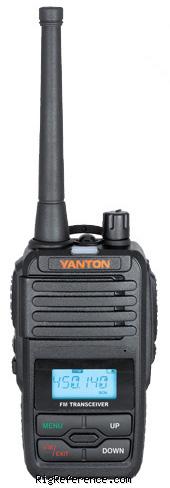

Yanton T-320

General characteristics

HAM bands

2m  70cm

Frequency stability

± 2.5 p.p.m.

Tuning steps

?

Memories

199 channels in 1 bank(s)

Receiver

RX-range

87.5-108 / 136-174 / 400-480 MHz

Modulations

FM   N-FM

Sensitivity

≤ 0.20 µV (12 dB SINAD)

Selectivity

?

Filters

12.5 / 25 kHz

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

500 mW

Transmitter

TX-range

136-174 / 400-480 MHz

Modulations

FM   N-FM

RF-output

3 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

3.7 V DC, 1200 mAh Li-ion Battery

Current drain RX

100 mA max

TX

1 A max

Physical

Dimensions (w×h×d)

115 × 55 × 30 mm (4.53 × 2.17 × 1.18 in)

Weight

230 gr (8.1 oz)

Form factor

Handheld

Manufactured

Between 201x and 201x in China

Other features

Usage

Amateur / Ham radio operators

Features + options

PC Software Programmable
Manual Programming
Wire Copy
VOX Function
CTCSS/DCS
Monitor, Reverse Frequency

Accessories

-

RigReference ID

6152

MPN

YANTON-T-000320
