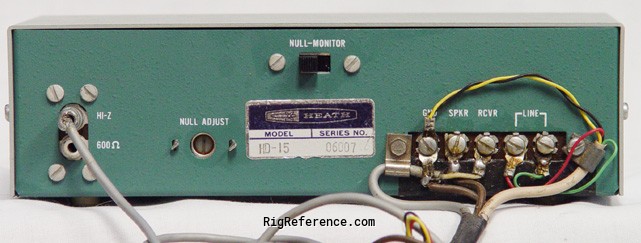

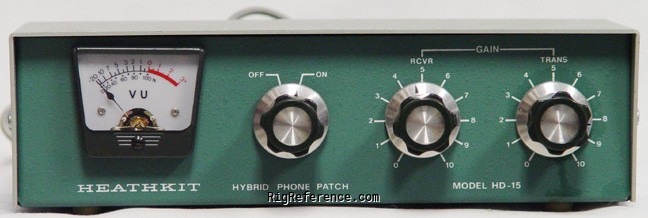

The Heathkit HD-15 phone-patch allows a ham to connect his radio to the standard telephone ‘POTS’ line and let someone at the other end of the phone-line communicate with the person at the other end of the radio link; often this was used for third-party traffic. Phone-patches can be run between third parties in the US, and also to people in a limited number of countries that have third party agreements with the US.
General characteristics
- HAM bands
- None
- Frequency stability
- -
- Tuning steps
- -
- Memories
- None
Receiver
- RX-range
- N/A
- Modulations
- All mode
- Sensitivity
- -
- Selectivity
- -
- Filters
- -
- Receiver system
- -
- IF-frequencies
- -
- Image rejection
- -
- Audio output
- -
Transmitter
- TX-range
- N/A
- Modulations
- All mode
- RF-output
- -
Connections
- Antenna
- Clamps / screws
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 235 × 67 × 92 mm (9.25 × 2.64 × 3.62 in)
- Weight
- 1.13 kg (2.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1966 and 1983 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6194
- MPN
- HEATHKIT-HD-000015
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HD-15. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Heathkit HD-15 is around:
- USD 28.00 ~ USD 9.00
These estimates are based on the following prices:
