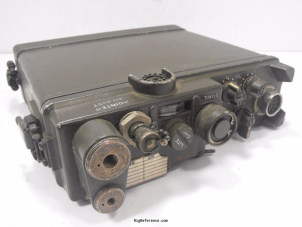

Military RT-176 / PRC-10

Military Portable Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Military RT-176 / PRC-10 rigs and spare parts on eBay Find the Military RT-176 / PRC-10 on Amazon
We receive a small fee when you buy through these links, thank you!

The PRC-10 was designed for use in the “Infantry Band” or 38-54.9 MC for use in command, control and coordination among infantry units.

Frequency range

RX-range
38-55 MHz
TX-range
38-55 MHz
HAM bands
6m
Stability
?
Tuning steps
Continuous
Filters
?

Receiver

Modulations
FM
Sensitivity
0.7 µV
Selectivity
75 kHz @ -6 dB
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
0.9 W

Connections

Antenna
BNC + Proprietary (military)
Impedance
50Ω

Electrical

Power requirements
Battery pack
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
265 × 77 × 470 mm (10.43 × 3.03 × 18.50 in)
Weight
8.42 kg (18.6 lbs)
Form factor
Portable
Manufactured
Between 195x and 19xx in USA
MPN
MILITARY-RT-000176-/-PRC-10

Other features

Memories
?
Usage
Military communication
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
