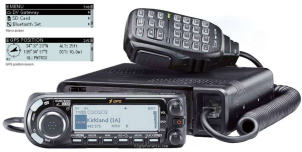

ICOM ID-4100A/E

Mobile VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find ICOM ID-4100A/E rigs and spare parts on eBay Find the ICOM ID-4100A/E on Amazon
We receive a small fee when you buy through these links, thank you!

The ICOM ID-4100A/E comes in 2 versions: A (USA) and E (EU). They differ in frequency range only.

Frequency range

RX-range
118-174 / 230-550 MHz
TX-range
144-148 / 430-450 MHz (USA)
144-146 / 430-440 MHz (EU)
HAM bands
2m  70cm
Stability
2.5 p.p.m. (10 °C to +60 °C)
Tuning steps
5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Filters
?

Receiver

Modulations
AM   FM   N-FM   D-STAR
Sensitivity
AM (10 dB S/N)
118-136 MHz: 1 µV
230-260 MHz: 5.6 µV
260-375 MHz: 1.8 µV

FM/N-FM (12 dB SINAD)
137-144 MHz: 0.32 µV
144-146 MHz: 0.18 µV
146-174 MHz: 0.32 µV
230-260 MHz: 1.8 µV
260-400 MHz: 0.56 µV
400-430 MHz: 0.32 µV
430-440 MHz: 0.18 µV
440-500 MHz: 0.32 µV
500-550 MHz: 0.56 µV

DV (BER 1%)
144-146 MHz: 0.18 µV
430-440 MHz: 0.18 µV
Selectivity
Wide: > 10 kHz/6 dB, < 30 kHz/60 dB
Narrow: > 6 kHz/6 dB, < 20 kHz/60 dB
DV: > 50 dB
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 46.35 MHz
2nd: 450 kHz
Image rejection
60 dB
Audio output
2.0 W at 10% distortion with an 8 ?

Transmitter

Modulations
FM   N-FM   D-STAR
RF-Output
50 / 15 / 5 W

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8 V DC ±15%
Current drain RX
1.2 A max
TX
13 A max

Physical

Dimensions (w×h×d)
150 × 40 × 172 mm (5.91 × 1.57 × 6.77 in)
Weight
1.20 kg (2.6 lbs)
Form factor
Mobile
Manufactured
Between 2017 and 20xx in Japan
MPN
ICOM-ID-004100A/E

Other features

Memories
1052 channels in 26 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Built-in GPS
Micro SD-card slot
D-Star repeater function
Speech synthesizer
Bluetooth option
Accessories
?
