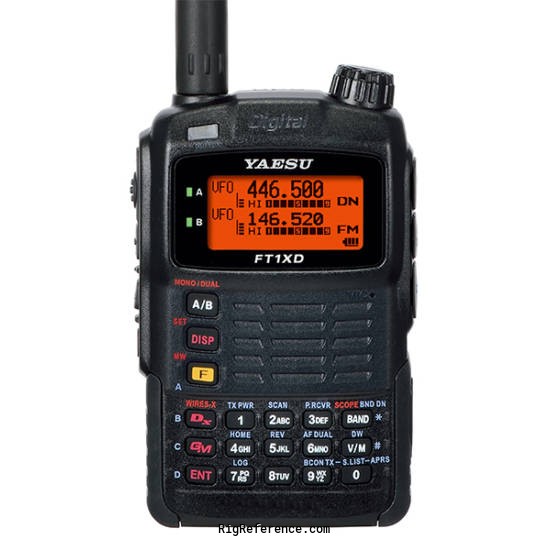

Yaesu FT-1XDE

Handheld Amateur Transceiver

Specs Manuals (0) Reviews (0) Prices (2) Compare

The Yaesu FT-1XDE is a handheld transceiver covering 0.5-999 MHz reception and 2m / 70cm transmission. The radio features single conversion (AM BC/W-FM) and double conversion (AM/FM/N-FM) receiver systems with IF: 130 kHz, 1st IF: 47.25 / 46.35 MHz and 2nd IF: 450 kHz. RF output is selectable from 100 mW to 5 W with an audio output of ≥ 200 mW at 10% distortion. It has 7 memory banks with a total of 1206 channels. Dimensions are 95 × 60 × 33 mm and the weight with SBR-14Li and antenna is 290 gr. Current drain is 45-240 mA in receive mode and 2 A max. in transmit mode. The radio features built-in GPS, IPX5 water spray resistance, Vibralert and GSM function (Group Short Message). It also has a Micro SD card slot, USB port and Snapshot function/Image transfer with optional camera-microphone.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Memories: 1206 channels in 7 bank(s)

Receiver

RX-range: 0.5-999 MHz
Modulations: AM FM N-FM DV
Sensitivity: 140-150 MHz: 0.16 µV (12 dB SINAD)
400-470 MHz: 0.16 µV (12 dB SINAD)
Selectivity: AM/N-FM: 12 kHz (-6 dB), 35 kHz (-60 dB)
Filters: ?
Receiver system: Single conversion (AM BC/W-FM) Double conversion (AM/FM/N-FM)
IF-frequencies: IF: 130 kHz
1st: 47.25 / 46.35 MHz
2nd: 450 kHz
Image rejection: ?
Audio output: ≥ 200 mW at 10% distortion

Transmitter

TX-range: 2m / 70cm
Modulations: FM N-FM DV
RF-output: 100 mW ... 5 W

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.4 V DC (battery pack) or 4-14 V DC external
Current drain RX: 45-240 mA
TX: 2 A max.

Physical

Dimensions (w×h×d): 60 × 95 × 33 mm (2.36 × 3.74 × 1.30 in)
Weight: 290 gr (10.2 oz) with SBR-14Li and antenna
Form factor: Handheld
Manufactured: Between 2015 and 201x

Other features

Usage: Amateur / Ham radio operators
Features + options: Built-in GPS
IPX5 water spray resistant
Vibralert
Internal AM bar antenna
GSM function (Group Short Message, 80 characters)
Micro SD card slot
Snapshot function/Image transfer with optional camera-microphone
Digital ARTS
USB port
Accessories: -
RigReference ID: 6344
MPN: YAESU-FT-000001XDE

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-1XDE. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FT-1XDE in Good condition is around:

USD 1 ~ USD 113

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2021	USD 150.00	Used / Mint	Gary
2018	USD 1.00	Used / Mint	Chris Meisch
