Xiegu G106

General characteristics

HAM bands

80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

±1.5 ppm within 30 min after power-on; 1 ppm/hour at 25 °C

Tuning steps

?

Memories

?

Receiver

RX-range

0.55-30 MHz, 88-108 MHz (WFM)

Modulations

AM   W-FM   CW   SSB

Sensitivity

CW: 0.25 µV (10 dB S/N)
SSB: 0.5 µV (10 dB S/N)
AM: 10 µV (10 dB S/N)

Selectivity

?

Filters

?

Receiver system

SDR, 16-bit codec sampling

IF-frequencies

?

Image rejection

?

Audio output

0.3 W

Transmitter

TX-range

80-10 m amateur bands incl. WARC (3.5-3.9, 7.0-7.2, 10.1-10.15, 14.0-14.35, 18.068-18.168, 21.0-21.45, 24.89-24.99, 28.0-29.7 MHz)

Modulations

AM   CW   SSB

RF-output

≥5 W @ 13.8 V DC

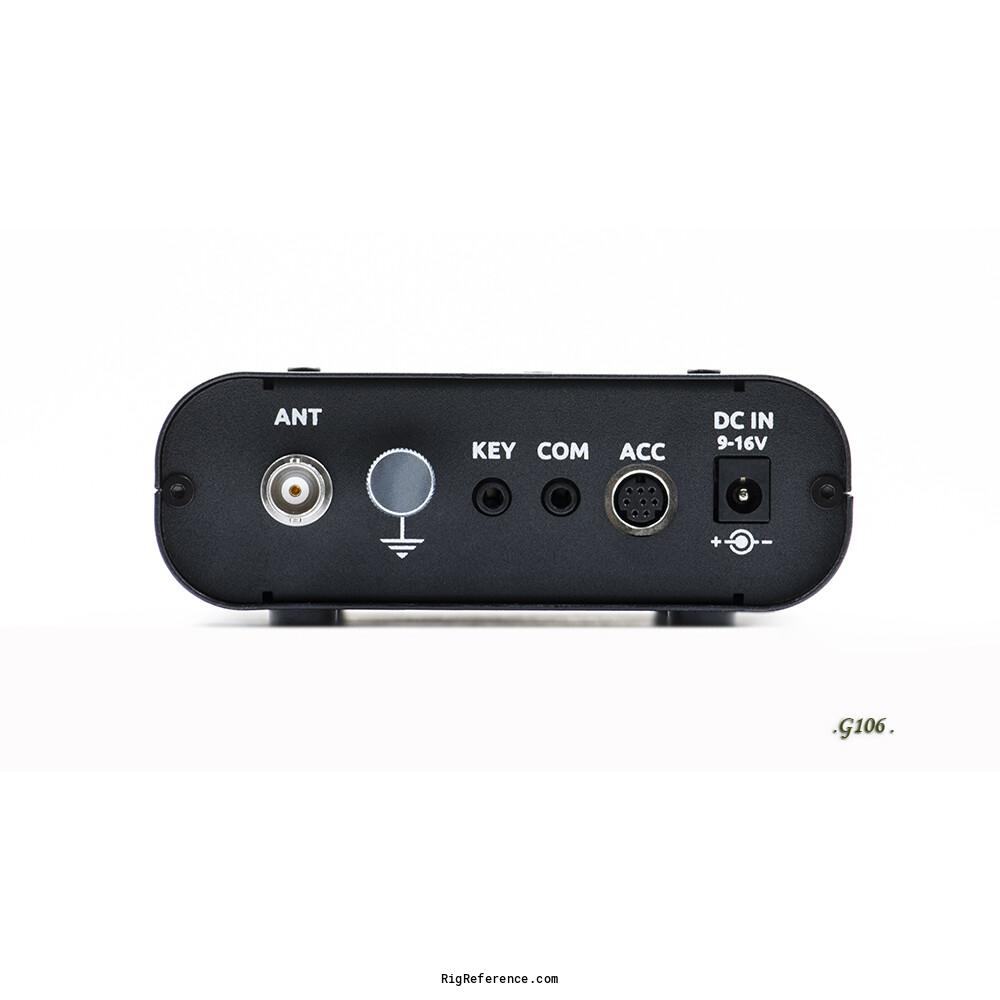

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

9-15 V DC

Current drain RX

0.37 A max

TX

2.8 A max

Physical

Dimensions (w×h×d)

120 × 40 × 135 mm (4.72 × 1.57 × 5.31 in)

Weight

720 gr (1.6 lbs) Radio unit only

Form factor

Portable

Manufactured

Between 2022 and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

5 W QRP SDR transceiver
General coverage HF receiver
Wide FM broadcast reception 88-108 MHz
Spectrum scope (48 kHz)
CW digital filter with three bandwidths
Electronic keyer
Computer (CAT) control
Digital modes via optional DE-19 interface

Accessories

-

RigReference ID

6674

MPN

XIEGU-G000106
