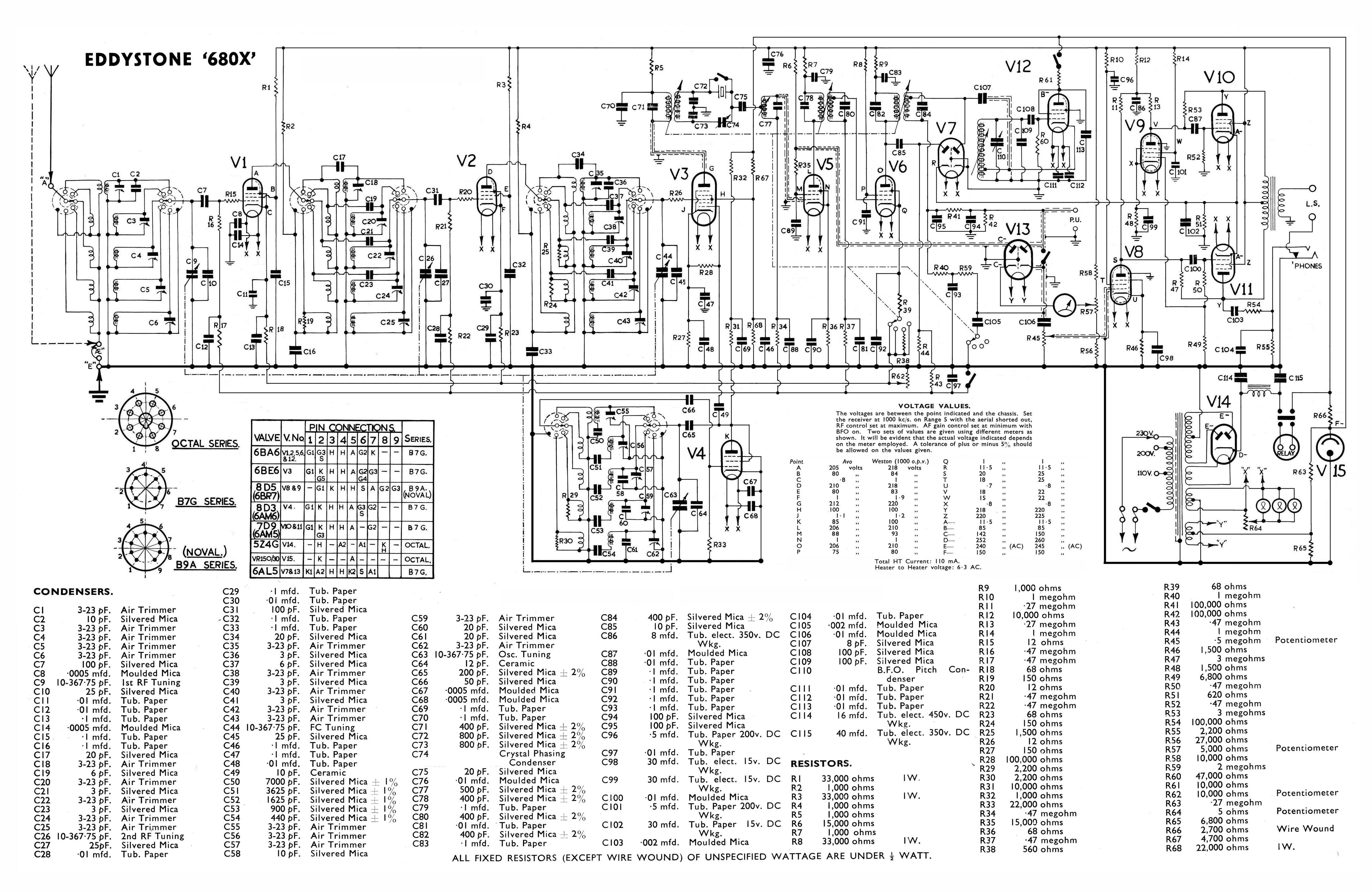

Eddystone 680X High resolution circuit diagram
Redrawn circuit diagram on A3 format. Source and copyright unknown.
Originally published in 1955, uploaded by RigReference
This document is related to the following rigs...
