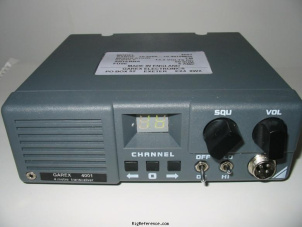

AKD 4001

General characteristics

HAM bands

4m

Frequency stability

10 p.p.m. over operating temp range

Tuning steps

12.5 kHz

Memories

20 channels in 1 bank(s)

Receiver

RX-range

70.2500–70.4875 MHz

Modulations

FM

Sensitivity

<0.25mV for 12dB SINAD

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

90 dB

Audio output

2W

Transmitter

TX-range

70.2500–70.4875 MHz

Modulations

FM

RF-output

High: 25 W, Low: 5 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

4 A max

Physical

Dimensions (w×h×d)

185 × 60 × 200 mm (7.28 × 2.36 × 7.87 in)

Weight

825 gr (1.8 lbs)

Form factor

Mobile

Manufactured

Between 19xx and 20xx in Great Britain

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2222

MPN

AKD-004001
