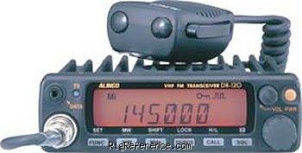

Alinco DR-120H

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Alinco DR-120H rigs and spare parts on eBay

Find the Alinco DR-120H on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 60 dB
Audio output: ?

Transmitter

TX-range: 144-146 MHz
Modulations: FM
RF-output: High: 50 W, Medium: 10 W, Low: 5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 0.6 A
TX: Max 11 A

Physical

Dimensions (w×h×d): 140 × 40 × 174 mm (5.51 × 1.57 × 6.85 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Mobile
Manufactured: Between 2003 and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS/DCS. 10F3 digital voice option (EJ-47U)
Accessories: -
RigReference ID: 2310
MPN: ALINCO-DR-000120H
